Simulation

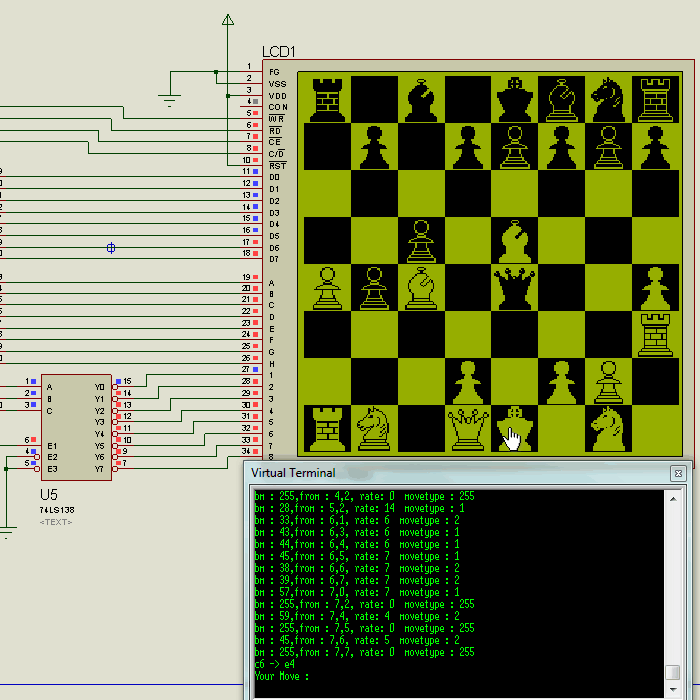

The most exciting and important feature of Proteus VSM is its ability to simulate the interaction between software running on a microcontroller and any analogue or digital electronics connected to it. The micro-controller model sits on the schematic along with the other elements of your product design. It simulates the execution of your object code (machine code), just like a real chip. If the program code writes to a port, the logic levels in circuit change accordingly, and if the circuit changes the state of the processor's pins, this will be seen by your program code, just as in real life.

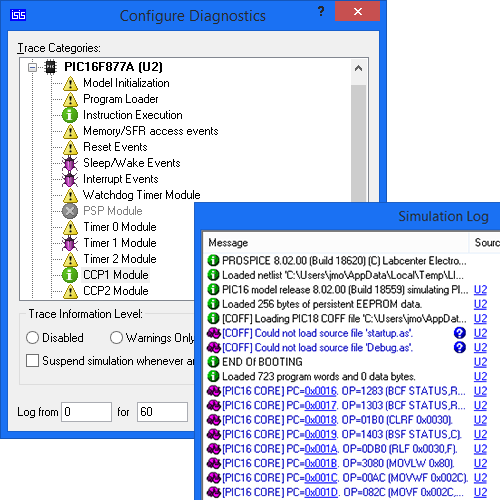

The VSM CPU models fully simulate I/O ports, interrupts, timers, USARTs and all other peripherals present on each supported processor. It is anything but a simple software simulator since the interaction of all these peripherals with the external circuit is fully modelled down to waveform level and the entire system is therefore simulated.
With over 750 supported micro-processor variants, many thousands of embedded SPICE models and one the worlds largest libraries of embedded simulation peripherals, Proteus VSM remains the first choice for embedded simulation.
